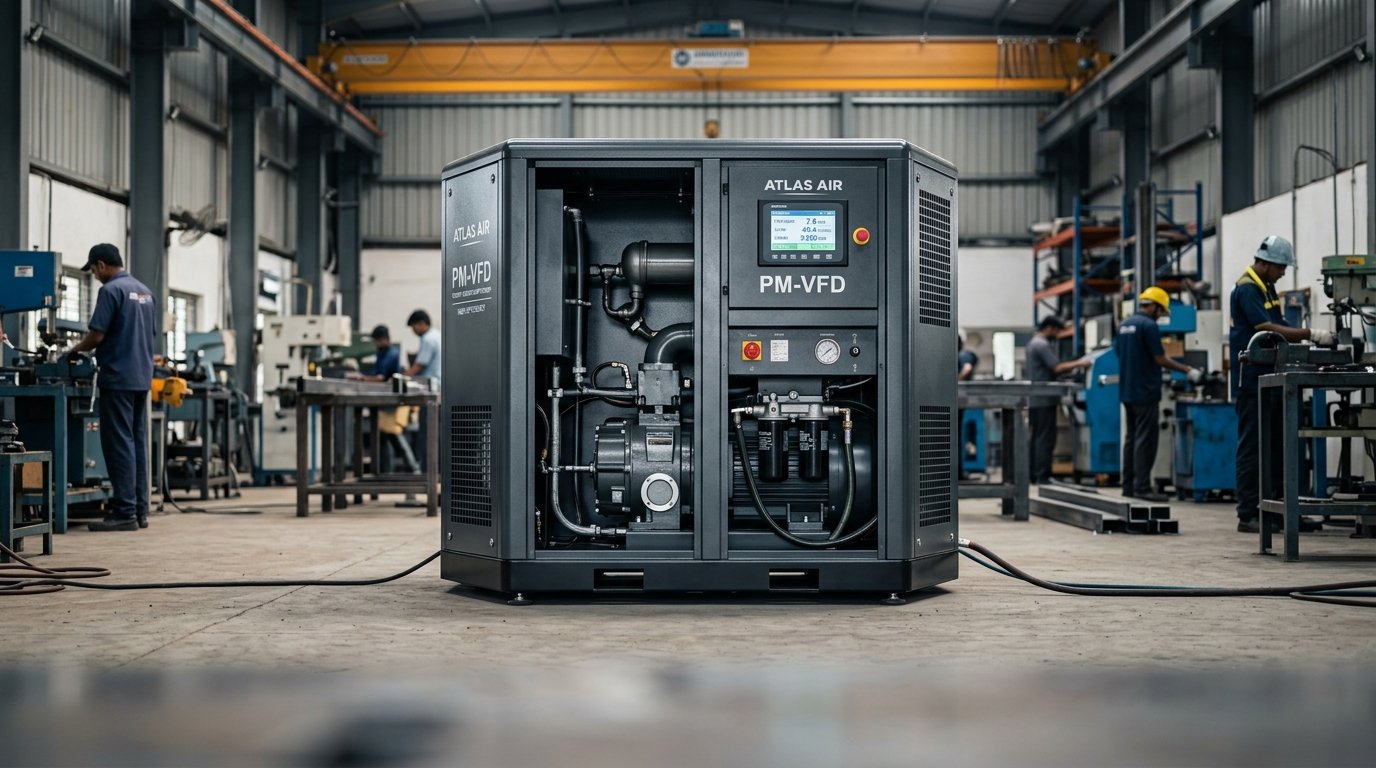

Demystifying PM-VFD Technology: Why Fixed-Speed Air Compressors Cost You a Fortune
Discover how Permanent Magnet Synchronous Motors (PMSM) and Variable Frequency Drives eliminate destructive idle unload cycles and cut industrial electricity bills by up to 45%.
Walk through almost any industrial manufacturing plant with traditional fixed-speed compressors, and you will hear a recurring sound: the machine reaches cutoff pressure, closes its intake valve, and enters "Unload" mode. The compressor stops supplying air, but its heavy motor continues spinning at 100% synchronous speed, burning enormous amounts of electricity doing absolutely nothing.
In practical factory environments where air consumption fluctuates by 20% to 60% throughout the shift, conventional fixed-speed units act like cars driven with the accelerator pinned to the floor while using the brake pedal to regulate speed.
AERODYNE Permanent Magnet Variable Frequency Drive (PM-VFD) technology solves this systemic inefficiency at the root.
The Hidden Bleed: The Idle Unload Penalty
In a conventional fixed-speed compressor:
- When plant air pressure reaches its high setpoint, the intake suction throttle closes.
- The 3-phase induction motor continues running to prevent motor burnout caused by frequent starting cycles.
- While in this idle unload state, the compressor still draws 40% to 70% of its full-load electrical power, generating heat, spinning bearings, and producing zero CFM of usable air.
If your plant operates with an average load factor of 65%, a fixed-speed compressor is squandering up to one-third of its total electricity draw purely in unloaded circulation!
Anatomy of a Permanent Magnet Synchronous Motor (PMSM)
AERODYNE PM-VFD systems replace outdated standard AC induction motors with ultra-high-efficiency IE4 / IE5 Permanent Magnet Synchronous Motors:
- Rare-Earth Neodymium Magnets (NdFeB): Embedded directly inside the rotor, these magnets generate an intense, continuous magnetic flux without drawing reactive magnetizing current from the grid.
- Zero Rotor Copper Losses: Standard induction motors lose substantial energy through rotor resistance heating. PMSM rotors have zero slip and zero rotor winding losses, remaining cool and operating with 96%+ electrical efficiency across their entire operating band.
- Coaxial Direct-Drive Integration: The motor rotor is mounted directly onto the compressor male rotor shaft, completely eliminating belts, pulleys, gearboxes, and coupling alignments. Transmission loss is 0.0%.
Precise Pressure Band Stabilization (±0.1 Bar)
Beyond eliminating unload losses, PM-VFD systems maintain razor-sharp pressure stability across your factory pipelines:
| Operating Characteristic | Conventional Fixed-Speed | AERODYNE PM-VFD Intelligent Drive |
|---|---|---|
| Pressure Fluctuation | Wide swings: ±1.0 to ±1.5 Bar | Ultra-tight control: ±0.1 Bar |
| Motor Starting Draw | 600% to 800% peak inrush current | 100% gentle soft-start ramp |
| Electrical Infrastructure Stress | Frequent thermal spikes on transformers | Zero voltage dip, unity power factor (>0.98) |
| Unload Power Consumption | 40% to 65% of rated power | 0% (Machine modulates speed or sleeps) |
| Average Energy Savings | Baseline | 30% to 45% Net kWh Reduction |
The "2-PSI Rule" of Compressed Air
For every 2 PSI (0.14 bar) you over-pressurize a pneumatic system to compensate for fixed-speed pressure drops, compressor power draw increases by a full 1%. By stabilizing line pressure at the lowest acceptable operating threshold without pressure dips, AERODYNE PM-VFD saves an additional 5% to 8% in base power demand alone.
Step-by-Step Energy Payback Audit
To calculate the expected annual financial return of replacing a 75 kW fixed-speed compressor with an AERODYNE PM-VFD package:
- Plant Load Factor = 65%
- Unload Power Ratio = 45% × 75 kW = 33.75 kW (wasted when unloaded)
- Unload Hours per Year (6,000 hrs total) = 35% × 6,000 = 2,100 hours
- Wasted kWh Eliminated = 33.75 kW × 2,100 hrs = 70,875 kWh
- Plus PM Motor Efficiency Gain (IE5 vs IE2) ≈ 28,000 kWh
- Total Annual Power Saved ≈ 98,875 kWh
At an industrial tariff of $0.13 per kWh, this represents $12,853.75 in yearly direct savings. The payback period for upgrading to an AERODYNE PM-VFD system is routinely achieved in less than 14 months.
Summary: Stop Paying for Air You Don't Use
If your factory's production shifts vary, or your machinery cycles on and off, fixed-speed air compression is draining your operating margins. PM-VFD is no longer an optional luxury—it is the modern baseline standard for profitable manufacturing.
