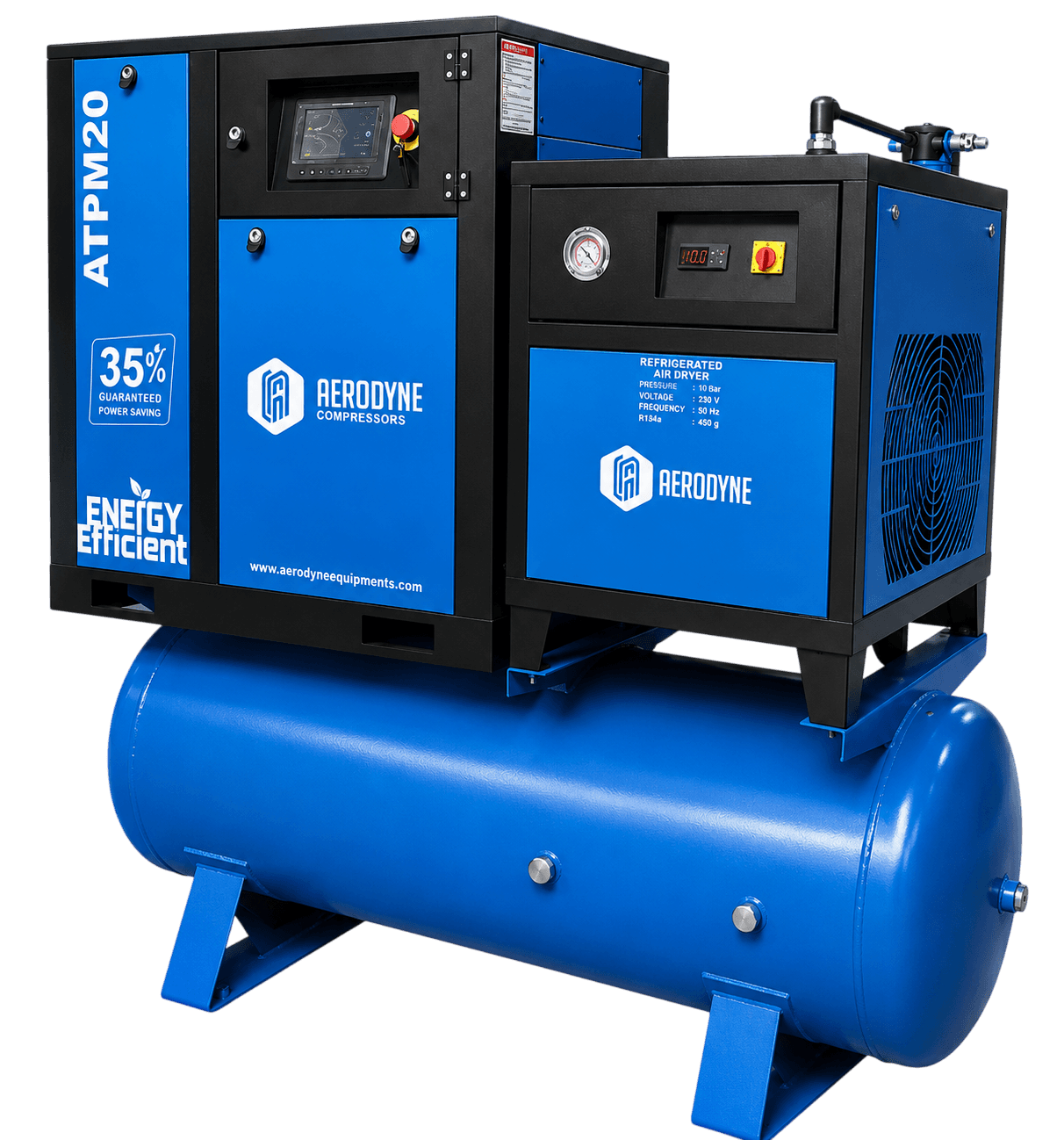

AERODYNE High Pressure Variable Speed Compressor
Specialized 16 bar high-pressure variable speed screw compressor offering continuous duty operation for fiber laser cutting and precision manufacturing.
The Industrial Challenge
Demanding applications like fiber laser cutting and high-pressure pneumatics require stable, pulsation-free 16 bar air with zero moisture. Traditional piston systems overheat and shut down under continuous duty, while multi-component setups waste factory floor space.
The AERODYNE Solution
AERODYNE's tank-mounted 16 bar High Pressure Variable Speed Compressor integrates a precision screw block, refrigerated dryer, and receiver into one compact unit, ensuring continuous 24/7 duty cycle, rock-solid 16 bar delivery, and up to 35% verified power savings.
Consistent Pressure. Optimum Performance.
AERODYNE 16 bar high-pressure variable speed screw compressors provide robust, continuous, and stable high-pressure air delivery.

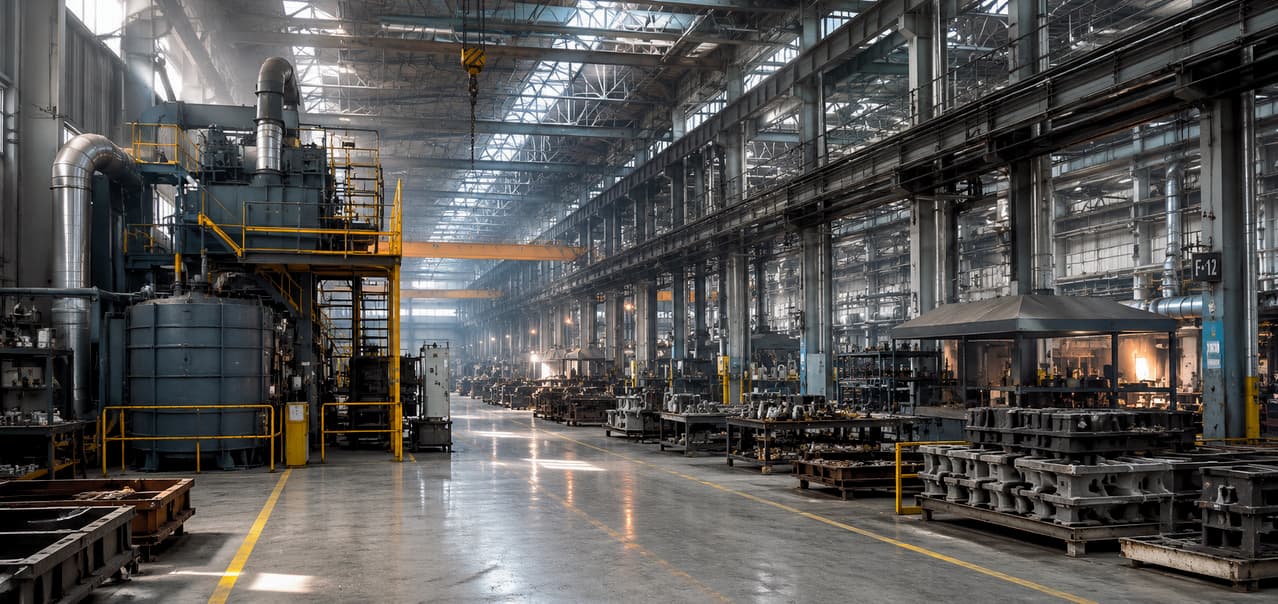

16 Bar Max Working Pressure
Tank-Mounted All-In-One
24/7 Continuous Duty
PET Blowing & Pressure Testing
High Pressure Variable Speed Compressor
16 Bar Continuous Working Pressure · Tank-Mounted VFD Technology
| Model | Motor | 16 Bar | Sound (dBA) | Outlet | ||
|---|---|---|---|---|---|---|
| kW | HP | cfm | m³/min | |||
| ATPM-20 H | 15 | 20 | 54 | 1.52 | 68 | G1 |
| ATPM-30 H | 22 | 30 | 93 | 2.63 | 68 | G1 |
| ATPM-40 H | 30 | 40 | 110 | 3.11 | 70 | G1 |
| ATPM-50 H | 37 | 50 | 131 | 3.70 | 70 | G1½ |
| ATPM-75 H | 55 | 75 | 200 | 5.66 | 85 | G2 |
| ATPM-100 H | 75 | 100 | 315 | 8.92 | 85 | G2 |
Sustainable Productivity • AERODYNE EQUIPMENTS
* Specifications are tested as per ISO standard conditions.
