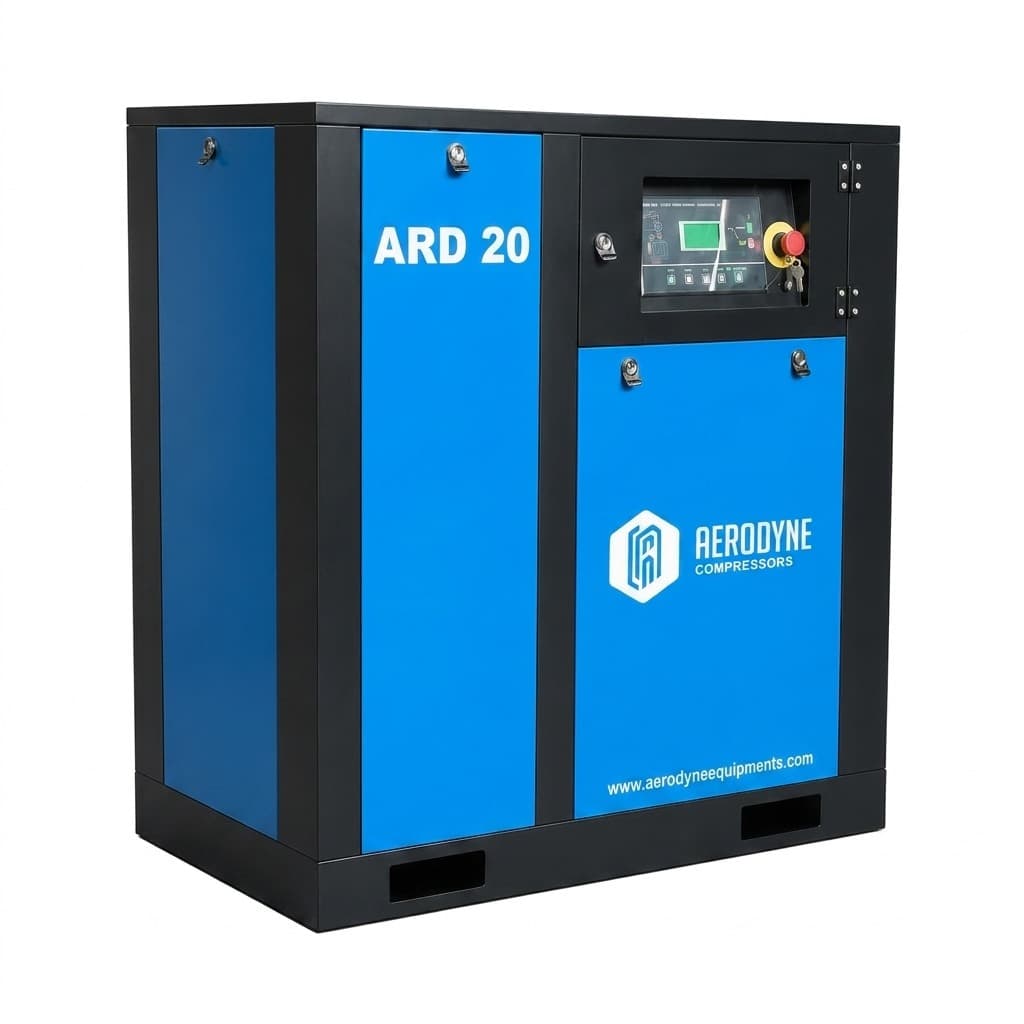

AERODYNE Direct Drive Screw Air Compressors
Robust continuous duty air compressors tested to 55°C ambient.
The Industrial Challenge
Standard belt-driven units suffer from transmission power loss and belt degradation in dusty, high-temperature industrial environments.
The AERODYNE Solution
We eliminated the belts entirely. AERODYNE's direct-drive shafts connect the premium efficiency motor directly to the air-end block for 100% power transfer.
Robust Performance
Built For Continuous Duty
Engineered for high-temperature resilience and zero power loss transmission in harsh environments.
Direct Drive
High Efficiency Direct Drive

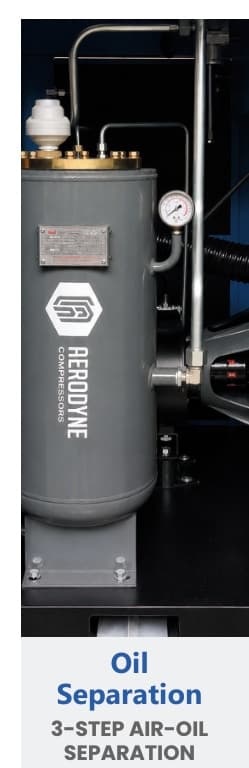

Filtration
3-Step Air-Oil Separation

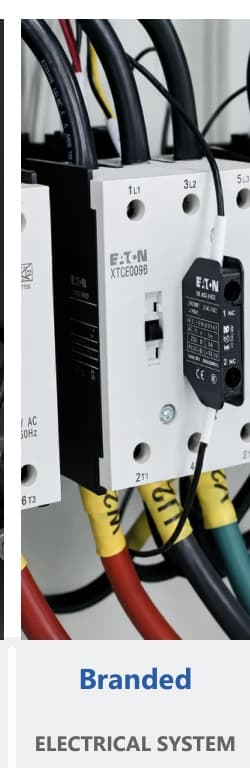

Electrical
Heavy Duty Electrical System

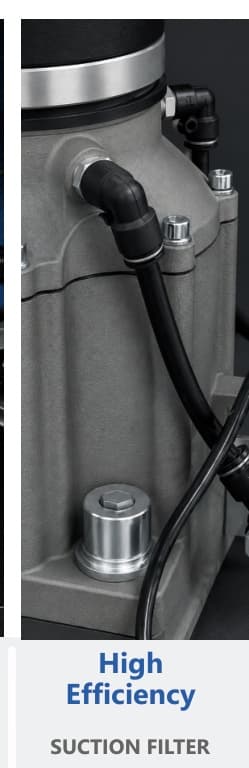

Intake
Advanced Suction Filter
Technical Specifications
Direct Drive Screw Air Compressor • Fixed Speed 1:1 Coupling
Verified Factory Certified Data
← Swipe horizontally to view full specifications →
| Model | Motor | 8 bar | 10 bar | 13 bar | Noise (dB) | Outlet Connection | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| kW | HP | cfm | m³/min | cfm | m³/min | cfm | m³/min | |||
| ARD - 7.5 | 5.5 | 7.5 | 30 | 0.85 | 24 | 0.68 | - | - | 66 | G¾ |
| ARD - 10 | 7.5 | 10 | 42 | 1.19 | 35 | 0.99 | 29 | 0.82 | 68 | G¾ |
| ARD - 15 | 11 | 15 | 62 | 1.76 | 53 | 1.50 | 36 | 1.02 | 68 | G1 |
| ARD - 20 | 15 | 20 | 82 | 2.32 | 74 | 2.10 | 58 | 1.64 | 68 | G1 |
| ARD - 25 | 18.5 | 25 | 109 | 3.09 | 92 | 2.61 | 80 | 2.27 | 70 | G1 |
| ARD - 30 | 22 | 30 | 129 | 3.65 | 112 | 3.17 | 97 | 2.75 | 70 | G1 |
| ARD - 40 | 30 | 40 | 185 | 5.24 | 157 | 4.45 | 135 | 3.82 | 72 | G1½ |
| ARD - 50 | 37 | 50 | 224 | 6.34 | 192 | 5.44 | 185 | 5.24 | 72 | G1½ |
| ARD - 60 | 45 | 60 | 265 | 7.50 | 245 | 6.94 | 205 | 5.81 | 74 | G1½ |
| ARD - 75 | 55 | 75 | 360 | 10.20 | 330 | 9.35 | 300 | 8.50 | 74 | G2 |
| ARD - 100 | 75 | 100 | 465 | 13.17 | 415 | 11.75 | 352 | 9.97 | 80 | G2 |
| ARD - 120 | 90 | 120 | 560 | 15.86 | 516 | 14.61 | 430 | 12.18 | 85 | G2 |
| ARD - 150 | 110 | 150 | 725 | 20.53 | 615 | 17.42 | 575 | 16.28 | 85 | G2½ |
| ARD - 175 | 132 | 175 | 870 | 24.64 | 775 | 21.95 | 720 | 20.39 | 85 | G2½ |
Sustainable Productivity • AERODYNE EQUIPMENTS
* Specifications are tested as per ISO standard conditions.
