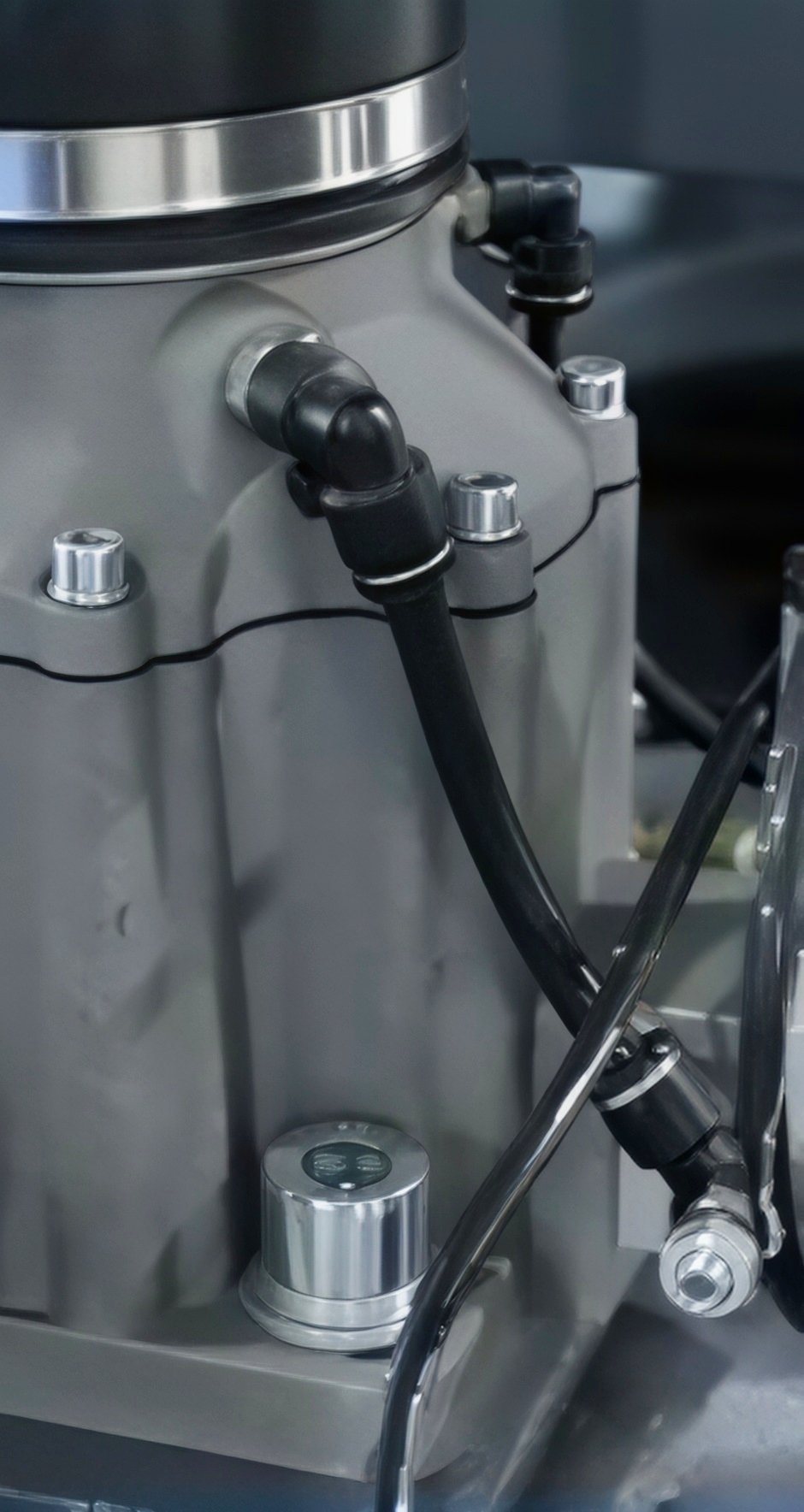

Two-Stage Rotary Screw vs. Single-Stage: The Thermodynamics of Industrial Energy Savings
Why continuous-duty manufacturing plants are replacing legacy single-stage compressors with inter-cooled two-stage rotary screw technology to achieve up to 15% electrical power reduction.
Electricity represents approximately 76% of the total lifetime operational cost of any industrial air compressor. Over a typical 10-year service span, the initial purchase price and routine maintenance combined are dwarfed by the utility meters spinning in your electrical control room.
For manufacturing facilities running continuous shifts—textile spinning, chemical processing, automotive assembly, and heavy engineering—even a 10% reduction in specific power consumption translates into hundreds of thousands of dollars in cumulative savings. This economic reality has accelerated a major industry migration: transitioning from conventional single-stage rotary screws to inter-cooled two-stage compression packages.
The Thermodynamics of Compression: Isothermal vs. Adiabatic
To grasp why two-stage compression inherently uses less power, we must examine the thermodynamic cycle of air:
- Adiabatic Compression (Theoretical Single-Stage): Air is compressed without heat removal. As pressure climbs, temperature escalates rapidly, increasing air volume and demanding disproportionately more shaft work from the motor.
- Isothermal Compression (Ideal Thermodynamic Limit): Air is compressed while heat is simultaneously removed at the exact rate it is generated, maintaining a constant temperature throughout the stroke. This requires the absolute minimum mechanical work.
In practical factory operations, true isothermal compression is mechanically impossible in a single air end because compression occurs faster than heat can dissipate through rotor walls.
Two-stage compression bridges this physical gap. By splitting total pressure rise into two distinct phases separated by an inter-stage cooling zone, the compression cycle dramatically shifts toward the isothermal ideal curve.
Mechanical Architecture: How Two-Stage Compression Works
Rather than forcing a single set of male and female helical rotors to compress atmospheric air (1 bar) all the way up to target discharge pressure (8 to 13 bar), the AERODYNE Two-Stage Series divides the workload across two synchronized rotor chambers:
- Stage 1 (Low Pressure): Ambient filtered air enters the oversized low-pressure rotor pair. It is gently compressed to an intermediate pressure (approximately 2.5 to 3.5 bar).
- Inter-Stage Oil Curtain Injection: The air exits the first stage at an elevated temperature and immediately enters an integrated inter-cooling zone. Atomized synthetic coolant is injected across the air stream, instantly absorbing heat and dropping the air temperature by 25°C–35°C before it reaches the secondary rotors.
- Stage 2 (High Pressure): Cooler, denser air enters the high-pressure stage. Because cooler air has a smaller volume, significantly less mechanical shaft power is needed to perform the final compression to 8–13 bar.
Extended Bearing Life: The Hidden Reliability Multiplier
Beyond pure utility savings, two-stage architecture delivers an exponential boost in mechanical reliability. The life expectancy of rotor bearings (L10 rating) is inversely proportional to the cube of the applied radial load:
In a single-stage machine running at 10 bar, the entire pressure differential exerts massive radial and axial thrust loads onto one set of bearings. In contrast, a two-stage compressor halves the compression ratio per stage:
| Parameter | Single-Stage (8.5 Bar) | AERODYNE Two-Stage (8.5 Bar) | Operational Advantage |
|---|---|---|---|
| Stage 1 Compression Ratio | 8.5 : 1 | ~ 2.9 : 1 | Substantially reduced internal backpressure |
| Stage 2 Compression Ratio | N/A | ~ 2.9 : 1 | Gentle mechanical work distribution |
| Discharge Temperature | 85°C – 98°C | 68°C – 78°C | Slashes thermal oil degradation and oxidation |
| Rotor Radial Bearing Load | 100% (Baseline) | ~ 45% per stage | L10 bearing lifespan exceeds 100,000+ hours |
| Specific Power (kW / m³/min) | 6.8 – 7.4 kW | 5.7 – 6.2 kW | 12% to 15% immediate energy reduction |
By lowering the pressure differential across each rotor set, internal air slippage (blow-by past rotor clearances) is virtually eliminated, guaranteeing volumetric efficiency exceeding 95%.
Real-World Financial Engineering: 110 kW Continuous Payback Calculation
Consider a continuous production facility operating a standard 110 kW compressor:
- Annual Run Hours: 8,000 hours (24/7 continuous duty)
- Average Industrial Power Tariff: $0.12 per kWh
- Single-Stage Specific Power: 7.1 kW per m³/min (yielding ~15.5 m³/min at 110 kW full load)
- Two-Stage Specific Power: 6.1 kW per m³/min (delivering the same 15.5 m³/min with only 94.5 kW shaft demand)
The Net Annual Calculation:
- Hourly Power Delta = 110 kW - 94.5 kW = 15.5 kW
- Annual Energy Saved = 15.5 kW × 8,000 hrs = 124,000 kWh
- Annual Direct Cost Savings = 124,000 kWh × $0.12 = $14,880 per year
Over a 5-year operating window, the AERODYNE Two-Stage system returns $74,400 in direct utility cash savings, easily amortizing the initial capital cost difference within 12 to 18 months.
Strategic Recommendation for Facility Managers
If your facility operates compressors above 55 kW for more than 4,000 hours annually, specifying single-stage equipment is an expensive long-term compromise. Two-stage engineering eliminates thermal bottlenecks, secures double the bearing service life, and permanently locks in lower operating costs for your plant.
